What is the ISOBUS?

The ISOBUS technology is a milestone in the development of agriculture. In the course of farming, professionals often have to use machines and implements from different manufacturers. These different tools’ own, non-standardized solutions make it difficult to use the components commonly. For many implements a separate control unit (terminal) is required, which makes hard to exchange the devices for each session.

The agricultural equipment manufacturers have agreed on ISOBUS as a universal protocol, which is a standardized communication between the supporting implement, tool and the cab terminal. This allows you to control any manufacturer's ISOBUS-enabled device with a single universal terminal (ISOBUS UT).

The primary aim of the ISOBUS data-forwarding and operation is to standardize the communication between the tractors and the agricultural devices while providing entire compatibility for the data-operation of the different mobile systems and office softwares.

With this technology, ISOBUS provides a solution that makes it easier for users to control their machines and communicate, by enabling a single universal terminal (ISOBUS UT) to control any manufacturer's ISOBUS-enabled device. The effectiveness of ISOBUS is also demonstrated by many years of practical experience.

The protocol is based on the international standard ISO 11783 ("Tractors and machinery for agriculture and forestry - Serial control and communications data network").

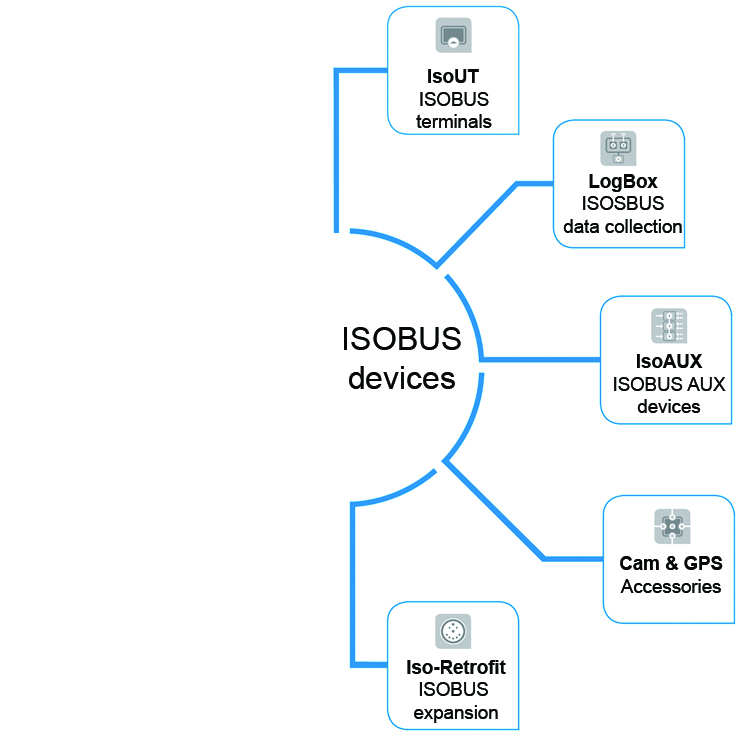

ISOBUS devices

ISOBUS data loggers

Automatic and general data-logging! The LogBox can read, process and forward the data provided by the tractors and implements’ ISOBUS and different CANBUS.

The device can automatically recognize the used CAN protocols as the ISOBUS (ISO11783), SAE J1939 universal CANBUS, ODB or the CANopen protocols.

The device can read the implements’ on-work and application information via the ISOBUS and read the diagnostic information as fuel economy, engine usage or work hours of the tractor.

During the processing all the data are combined and extended by the GPS information provided by the integrated GPS receiver and forward the collection data on-the-fly to the servers for further data-processing.

These features are integrated into a very compact outdoor device, which can work without any problem in -20 to +60 C° in dusty or humid environment condition.

The advantages

• Compact device-case with integrated antennas
• Integrated GPS receiver with optional RTK correction (RTCM 2.0)
• Integrated Bluetooth and optional WiFi and dual-SIM 3G GSM module for the effective data-communication.
• Universal CAN-based data-logging (SEA J1939, ISOBUS, CANopen, ODB, ISO-Diag)

Online management

Through our partners, we can offer comprehensive management systems that provide data processing, workflow planning, and overview of field units.

Log¹Box

A basic device with a Bluetooth module. It requires a handy with a proper data-forwarder application. It extends the functionality of the mobile-app. The LogBox communicates with the handy via the Bluetooth connection and forward the collected CANBUS - and the optional connectable extern GPS receiver data to the mobile app. The application can make some processing and can forward the data to the serversystems through the own GSM data-connection.

Log²Box

Device with integrated GPS and GSM module for online datalogging. It requires a SIM card with a proper data-connection service.

The device has a dual CAN connector to be able to get the data parallel from the tractor’s diagnostic CANBUS and the ISOBUS used by the implement.

Using the integrated GPS and GSM module the unit can work fully automatic logging and forwarding the data to the cloudservers.

Using a mobile-app or the ISOBUS UT display in the tractor, the user can make further configuration or diagnostic.

The device has a microSD card which can store the information in case of any GSM communication problem. In this case the collected data are stored on the SD card and can be sent to the server later. So, the data-integrity error can be avoided.

Log³Box

A new generation of online data collecting 4G device that includes all antennas integrated just like the previous versions, but has been enhanced with a 4G modem, Bluetooth LE module (iOS and Android compatible), multi-channel GPS module and WiFi connectivity.
WiFi enables you to upload work data faster and more cost-effectively than a mobile network.

ISOBUS terminals

Easy to use and expandable ISOBUS terminal supporting all ISOBUS functionality. Its ultra-bright, visible in sunshine, fullscreen 5.6 "or 8.4" screen with the latest touchscreen technology provides fast, easy-to-use and intuitive operation. The weatherproof housing is designed for work and operates in an extended temperature range with moisture and dust resistance.

t30i

The compact operating device with 5.6" display and VGA resolution for brilliant colors is suitable for use in sunlight. With an integrated sensor system as standard, brightness and color can be adapted to the surroundings automatically, as can the alignment of the screen with vertical or horizontal fitting. External function keys and proximity sensors ensure that optimal use is made of the screen area.

t35i

The t35i comes with a resistive touch foil surface that allows you to use it even in gloves.
All devices provide many connectivity options. As standard, each device has an ISO11783 CAN bus connector, two serial connectors (GPS, other), an ISO11786 signal connector (wheel sensors) and a USB connector.
The software of ANEDO terminals supports 27 different languages and many ISOBUS and precision GPS data based application cen be installed on it.

t50i

The t50i's high-brightness, 8.4-inch full-glass screen is clearly visible in the sun and is controlled by capacitive touch technology. When using the touch screen, additional buttons will pop up in a pop-up window, which will automatically retract after use (ISOBUS Stop-All-Implement, ESC, ACK, HOME, App Shift).
There is a scroll wheel on the back of both the t35i and the t50i, which allows you to operate the device accurately even in high-vibration environments. Similarly, both devices have an Ethernet connector, which allows you to connect, for example, a digital IP camera system.

ISOBUS and terminal accessories

ISOBUS is a linking device between different devices of different manufacturers. The ANEDO terminals also serve only as a central element in a continuously expanding system, so it is essential that this system be easily and comprehensively scalable. We also offer some useful accessories, such as a terminal system, camera system, GPS receiver, AUX accessories or cable types required for operation.

Orlaco Digital HD Camera

Orlaco's EMOS Ethernet camera brings smart optical systems one step closer to mobile devices. The design of the EMOS system succeeded in both difficult-to-operate and HD imaging.
Despite its compact size of 55x100x24mm, the device is extremely robust, shock and vibration resistant. The operating temperature range is -40 to +65 ° C and meets the requirements for water and dust resistance to IP68 / IP69K.

Novatel AG-Star DGPS / GLONASS Receiver

Novatel's high performance, highly accurate line return GPS receiver has been specifically designed for agricultural use. It can be connected to universal terminals via RS232 port.
The unit supports 12 + 3 channels on GPS and GLONASS networks and supports SBAS signal correction. In addition to the 10 Hz refresh, it provides SBAS correction with an accuracy of less than 60cm and, with the help of built-in GLIDE technology, provides even more accurate operation while guiding.

AUX-N A3 ISOBUS Joystick Accessory

The device is a programmable AUX accessory to ISO11783: 06 (ISOBUS AUX-N) that can be assigned to any ISOBUS function that requires 2D joystick or On / Off buttons.
The controllable functions of compatible implements are managed by the Universal Terminal and, when connected to the device, offer the user the opportunity to combine the available functions with the joysticks and switches provided by the device.

open:connect W30 modem

The open: connect W30 modem is a complement to the t50i and t35i universal terminals, providing an online connection to the terminal.
The device has a 4G modem, an integrated GPS receiver and a WiFi module, where external antennas can be conveniently wired to the top of the tractor cab. This tool enables you to send and receive ISOXML packages online, use online system update and diagnostics, and use Agrirouter.

Cables

There are many optional cables for ANEDO units that connect to different power units and connect other ISOBUS-based units.
Special mention should be made of ANEDO's proprietary In-Cab T-splitter cable, which can be attached to the ISOBUS In-Cab connector integrated into the tractor cab, providing an additional free In-Cab socket in addition to the wired device, allowing any number of devices to be attached to the ISOBUS network.

ISOBUS retrofit expansion

ISOBUS technology is a clear advantage of efficient precision cultivation, but requires well-prepared power tools to use it. We do not want to replace a couple of years old tractors because of the usability of a better implement, so it should be taken into account that the machine can be easily and manufacturerlessly prepared for handling ISOBUS implements.
The mounting kit includes the battery connector, the rear ISOBUS Breakaway connector and the inCab connector in the cabin. These can be complemented by the appropriate terminal, TraktorECU software and optionally the GPS receiver and / or wheel sensors.

ISOBUS NRS

The ISOBUS NRS is a complete package that includes all cable components, relays and connectors to provide basic 12V ISOBUS functionality for a standard 12V power unit.
The package includes a 5m wiring harness that connects the ISOBUS Breakaway connector on the back to the battery, the ignition switch and the InCab connector adapter in the cabin as the central unit. The cable set also includes additional connectors that can be used, for example, to expand the ISOBUS network with the ISOBUS Font Set.
The kit contains all the elements and a detailed description for self-assembly.

ISOBUS Front

The ISOBUS Front Kit is an additional package to the base kit that provides an additional external ISOBUS Breakaway connector for the network.
The 3m long wiring harness is to be wired to the base connector of the base set and can be used to wire the ISOBUS connector to the front of the machine for front-mounted machines.
The kit contains all the elements and a detailed description for self-assembly.
