ISOBUS COMPONENTS

for businesses

Development tools

We are working more than 10 years on ISOBUS development projects. During the many years we have realized what are the most critical tools required for high quality solutions.
Most of the cases we are working with our partners together to create communication protocol libraries, simulation and test tools or diagnostic tools.
As we are independent from the large manufacturers, we are open and flexible to customize tools for your needs, or extend them with any special requirement.

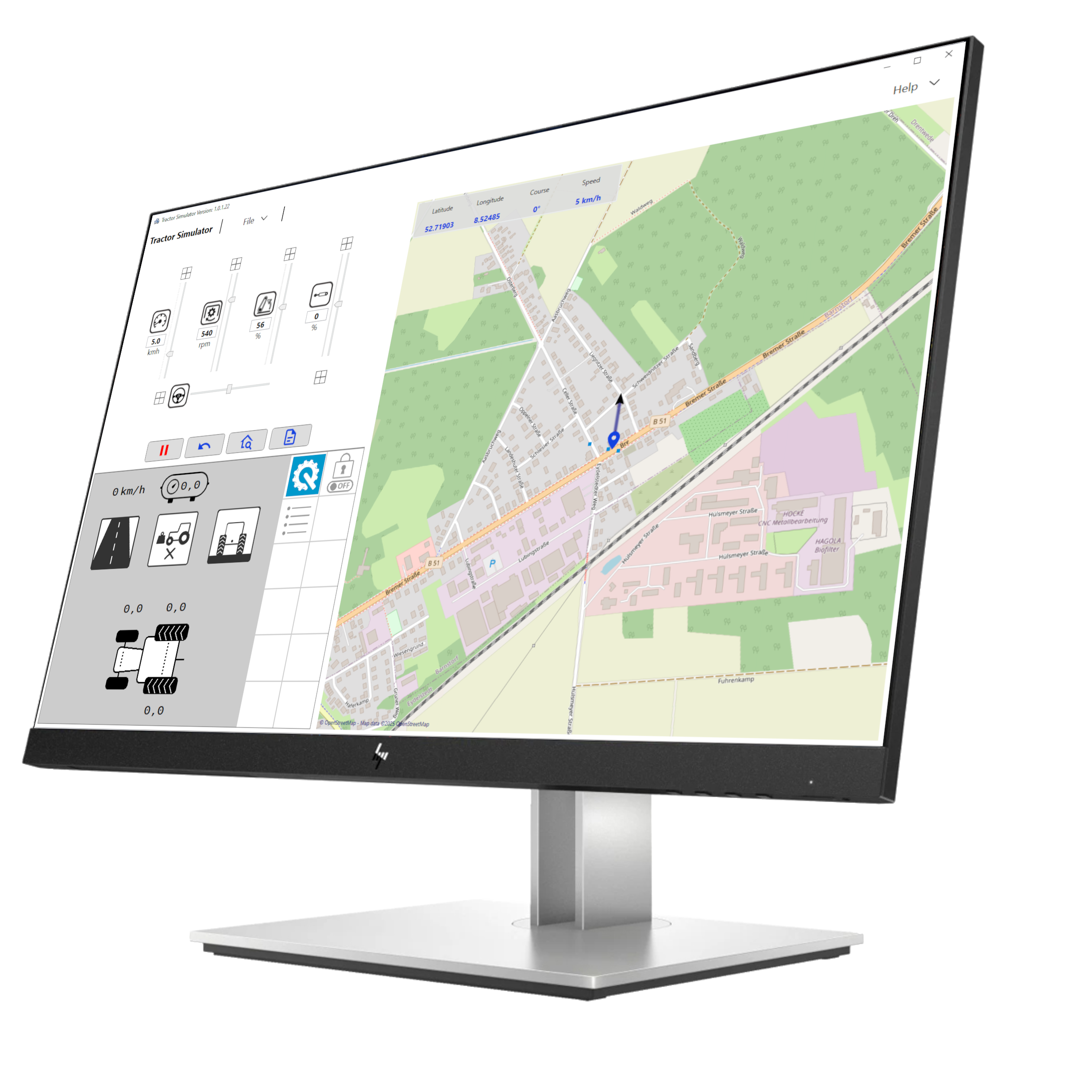

Tractor Simulator

Developed by Ro-Sys in collaboration with Anedo, this is our very first standalone software product — designed to bring the full functionality of an ISOBUS tractor right to the developer’s desk.

The Tractor Simulator supports key functions, which are required for a full in-office test of a new ISOBUS system:

  • Universal Terminal: Display and control of implement UIs
  • Task Controller: Job execution and application data logging with variable rate control
  • Tractor ECU: Simulating core tractor functions such as PTO, hydraulics, speed, suspension
  • TIM (Tractor Implement Management): Allowing authenticated implements to control tractor functions
  • GPS Simulator: Integrated map module which can provide a valid NMEA 0183 positioning stream to the integrated terminal or to an attached serial port.
  • IsoXML handling: On the map view you load the field boundaries of any standard taskdata package
  • Standard CAN interface: Using the PEAK CAN driver, the software is able to communicate with any real ISOBUS hardware.
Our goal: help developers test and validate their ISOBUS-based solutions faster, more reliably, and without the need for a physical tractor.

ANEDO ISOBUS Stack

The ISOBUS ECU Stack is a standardized platform and hardware-independent software solution that was developed for communication between tractor and implement via ISOBUS.
The stack is a software library that you can use in new and existing projects on your controllers / Job computers. It meets the standard of ISO 11783-6 for Version 4 Virtual Terminal, the ISO 11783-10 Task Controller Client and ISO11783-12 Diagnostic Services.

As development partner of ANEDO ISOBUS stack library, we can provide you a highly customized and optimized embedded library with all the ISOBUS features. Every feature implementation is AEF certification ready from the basic ISO 11783:06 UT visualization to the autonome controling functions of the ISO 11783 Tractor Implement Management standard.
