ISOBUS COMPONENTS

for businesses

ISOBUS Control units

If your company does need a robust programmable device, or rather a very flexible CodeSys based unit, we are ready to help you to find the most suitable electronic devices on the market.
Our hardware developer partners are working on the EU market, providing the highest available quality for industiral needs.

ANEDO GmbH’s, open:control family providing the optimal combination of the CODESYS® and EtherCAT® as basic technologies. It provides an efficient solution for ever faster development cycles in the field of mobile working machines and for the growing complexity of control systems with new integral processes in software development and an innovative architecture for hardware components. open:control can be used easily and securely with everything from the smallest to the most complex machines, all with optimal scalability.

BUCHER Automation's JetControl Mobile series are ideally suited to the specific requirements of mobile applications. They are characterized by a combination of maximum robustness, high-performance and scalable performance data, and the implementation of individual customer requirements. The controllers can be installed directly in the vehicle without a control cabinet. This saves space and allows for flexible installation.

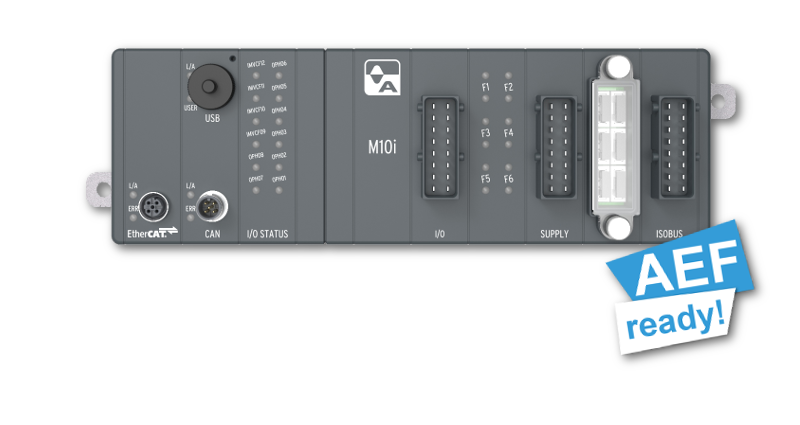

open:control M10i

Powerful small control unit with inputs and outputs, full ISOBUS functionality and expandability via EtherCAT in a molded plastic housing with mounting plate. Easy connection of the development system CODESYS via the integrated USB port.

1x CAN, 4x multifunctional input, 8x high-side output, CodeSYS program interface with integrated ISOBUS library

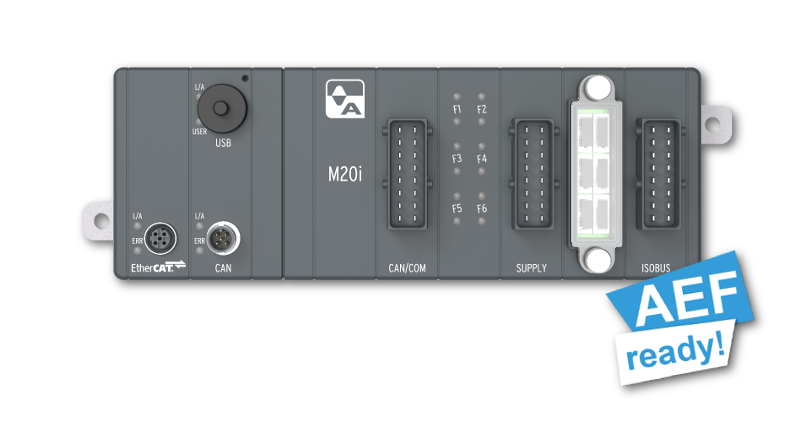

open:control M20i

Powerful ISOBUS gateway and expandable with inputs and outputs via EtherCAT in a molded plastic housing with mounting plate. Easy connection of the development system CODESYS via the integrated USB port.

2x CAN, RS485, 2xRS232, CodeSYS program interface with integrated ISOBUS library

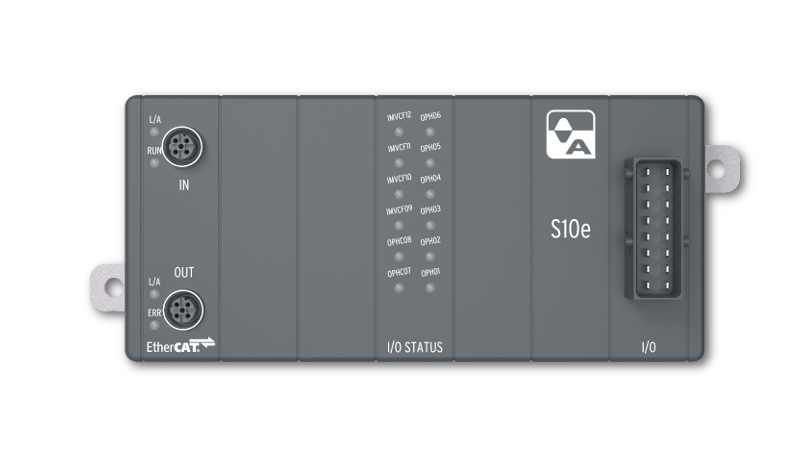

open:io S10e

A flexible IO extension module for any open:control unit, providing full customization possibility for your machine system.

EtherCAT I/O extension with 4 inputs and 8 outputs.

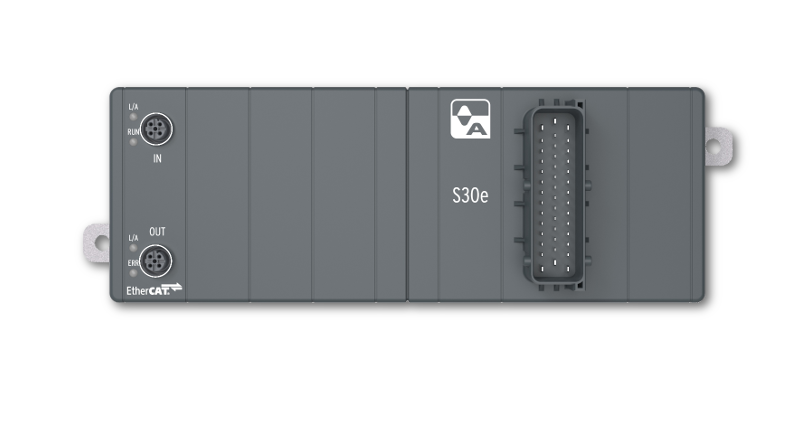

open:io S30e

A powerfull IO extension module for any open:control unit, providing full customization possibility for your machine system.

EtherCAT I/O extension with 10 inputs and 23 outputs.

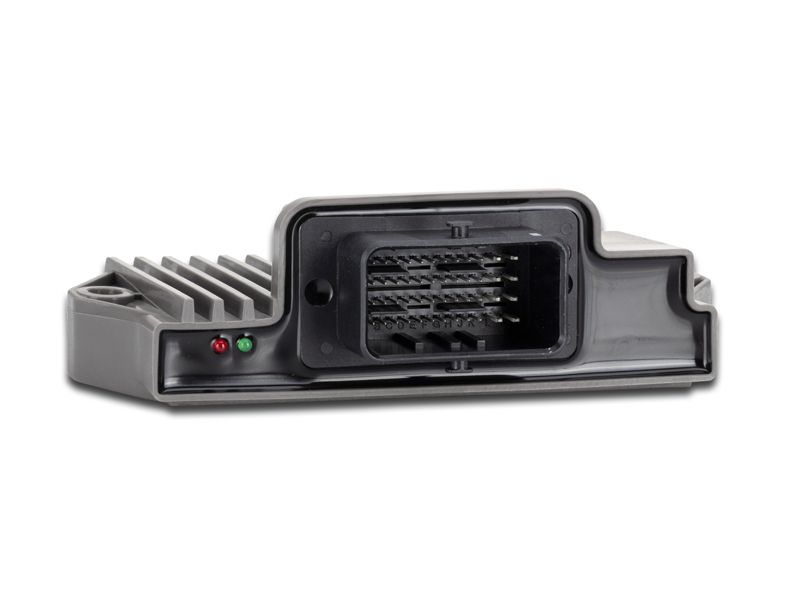

JetControl Mobile 230

Despite the compact dimensions, the JetControlMobile 230 offers a high number of flexibly configurable inputs and outputs. In its class, it sets standards in current carrying capacity and is therefore recommended in addition to the typical hydraulic applications for tasks with high continuous currents, e.g. for lighting applications. Short-circuit-proof sensor supplies reduce the wiring effort. It is AEF certification ready with the ANEDO's ISOBUS Stack.

1x CAN, 8xAI, 4xDI, 17xOutput channels
