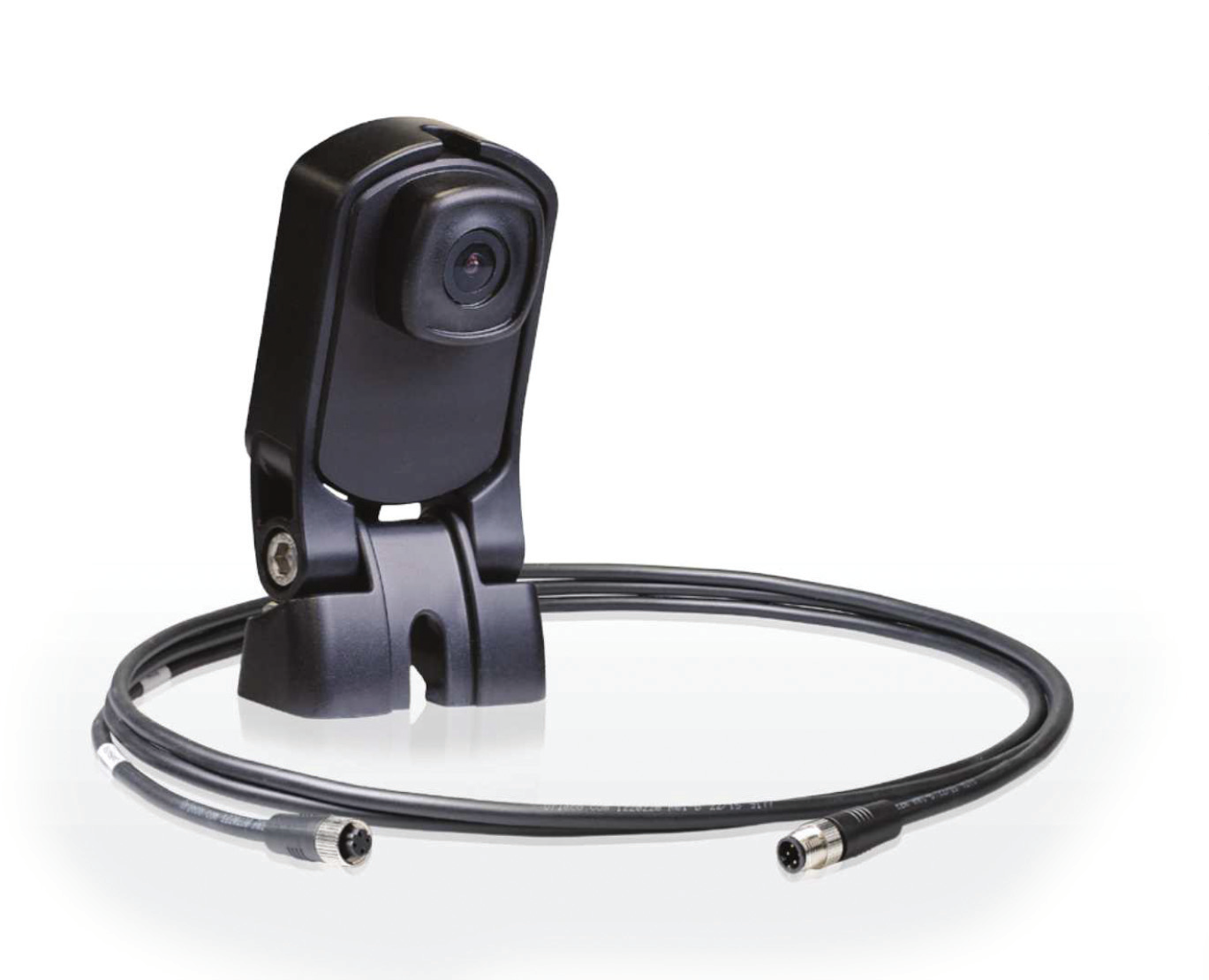

Orlaco Digital HD Camera
Orlaco's EMOS Ethernet camera brings smart optical systems one step closer to mobile devices.
The design of the EMOS system succeeded in both difficult-to-operate and HD imaging.
Despite its compact size of 55x100x24mm, the device is extremely robust,
shock and vibration resistant. The operating temperature range is -40 to +65 ° C and
meets the requirements for water and dust resistance to IP68 / IP69K.

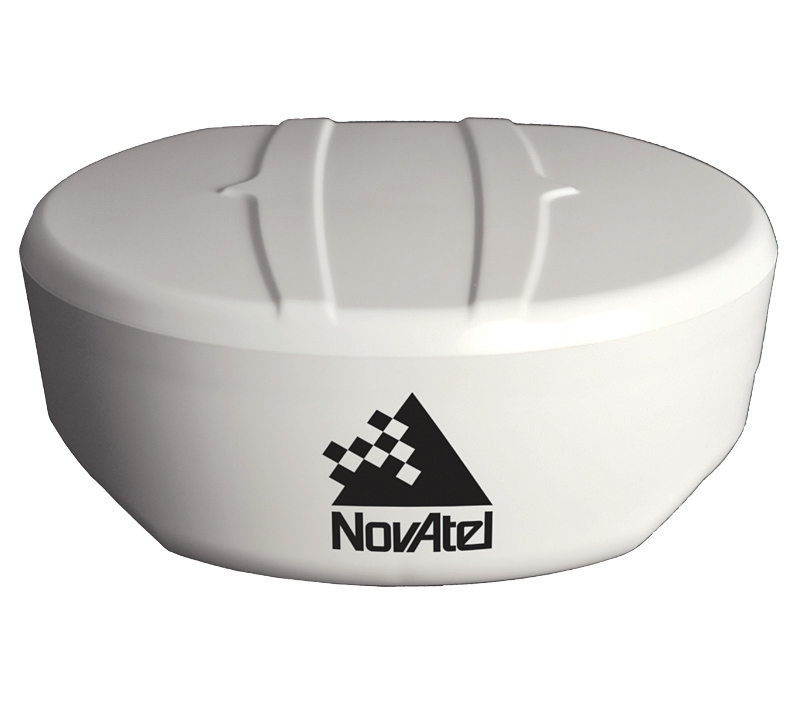

Novatel AG-Star DGPS / GLONASS Receiver
Novatel's high performance, highly accurate line return GPS receiver has been specifically designed for agricultural use.
It can be connected to universal terminals via RS232 port.
The unit supports 12 + 3 channels on GPS and GLONASS networks and supports SBAS signal correction.
In addition to the 10 Hz refresh, it provides SBAS correction with an accuracy of less than 60cm and,
with the help of built-in GLIDE technology, provides even more accurate operation while guiding.

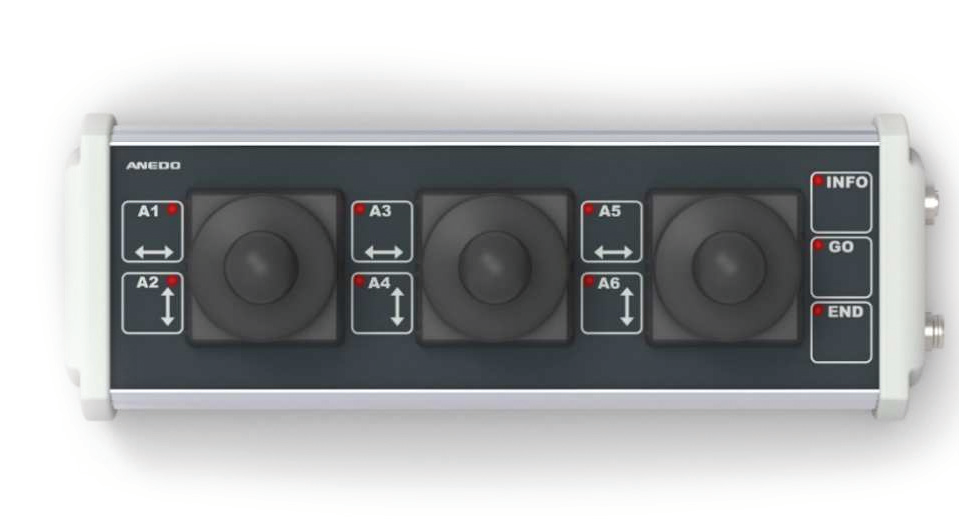

AUX-N A3 ISOBUS Joystick Accessory
The device is a programmable AUX accessory to ISO11783: 06 (ISOBUS AUX-N) that can be assigned
to any ISOBUS function that requires 2D joystick or On / Off buttons.
The controllable functions of compatible implements are managed by the Universal Terminal and,
when connected to the device, offer the user the opportunity to combine the available functions with the joysticks and switches provided by the device.

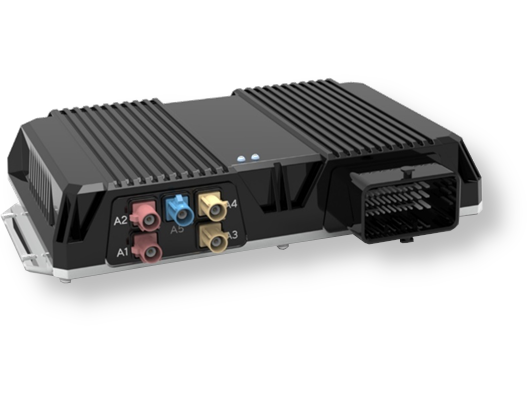

open:connect W30 modem
The open: connect W30 modem is a complement to the t50i and t35i universal terminals, providing an online connection to the terminal.
The device has a 4G modem, an integrated GPS receiver and a WiFi module, where external antennas can be conveniently wired to the top of the tractor cab.
This tool enables you to send and receive ISOXML packages online, use online system update and diagnostics, and use Agrirouter.

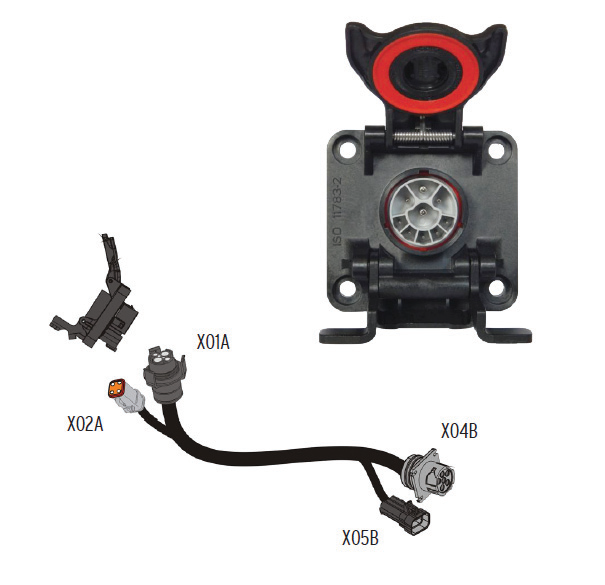

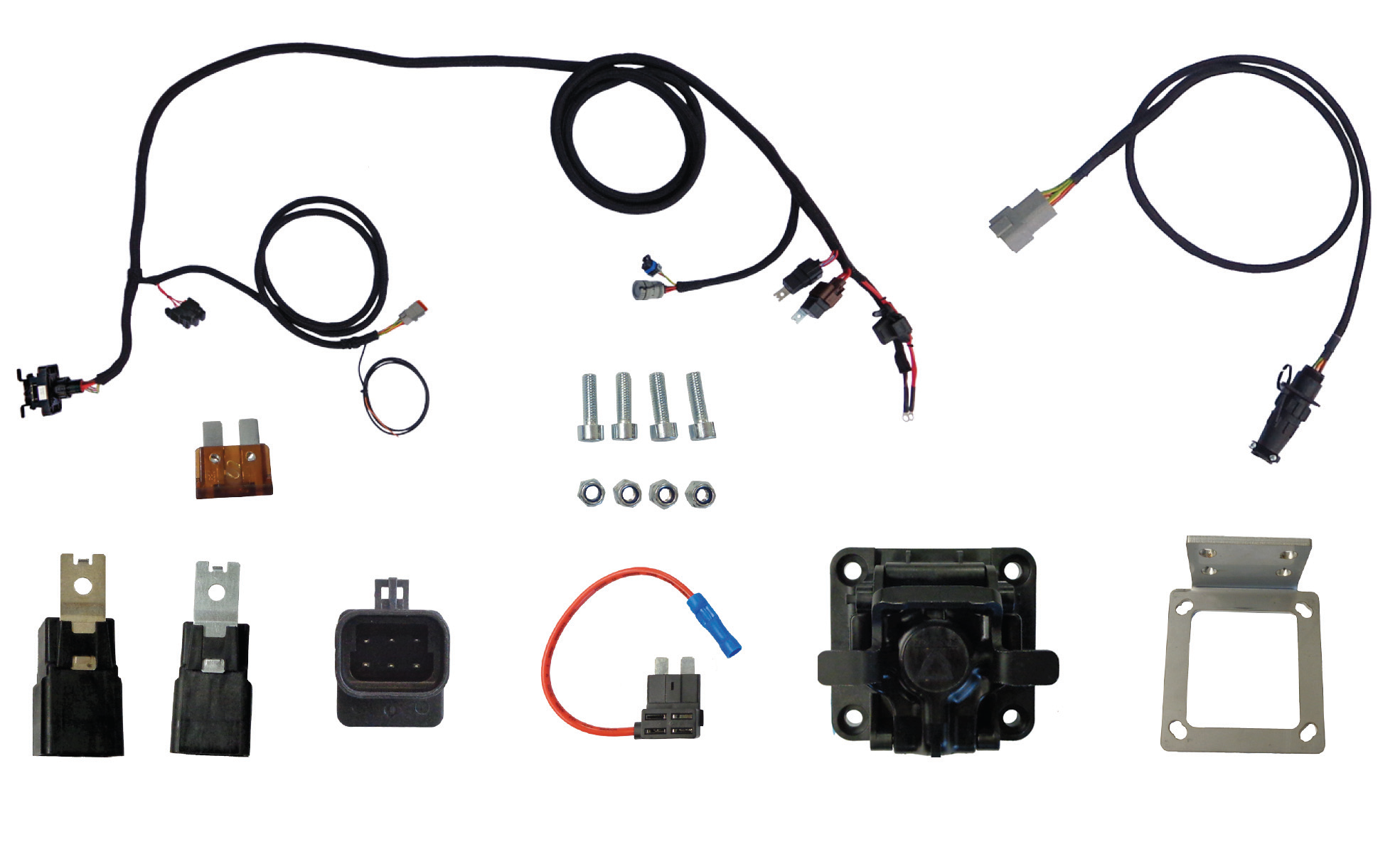

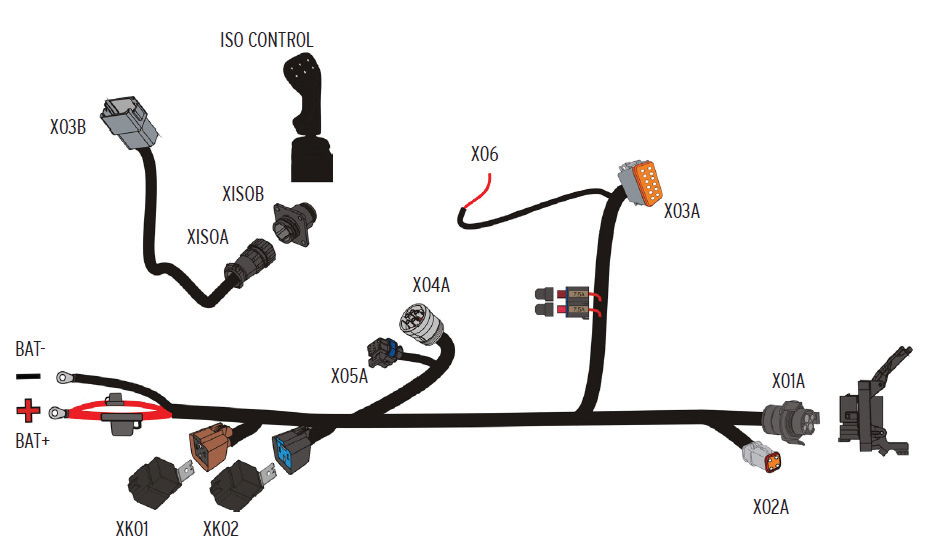

ISOBUS retrofit set
The ISO-FIT retrofit set is a complete package that includes all cable components,
relays and connectors to provide basic 12V ISOBUS functionality for a standard 12V power unit.
The package includes a 5m wiring harness that connects the ISOBUS Breakaway connector on the back to the battery,
the ignition switch and the InCab connector adapter in the cabin as the central unit.
The cable set also includes additional connectors that can be used, for example,
to expand the ISOBUS network with the ISOBUS Font Set.
The kit contains all the elements and a detailed description for self-assembly.

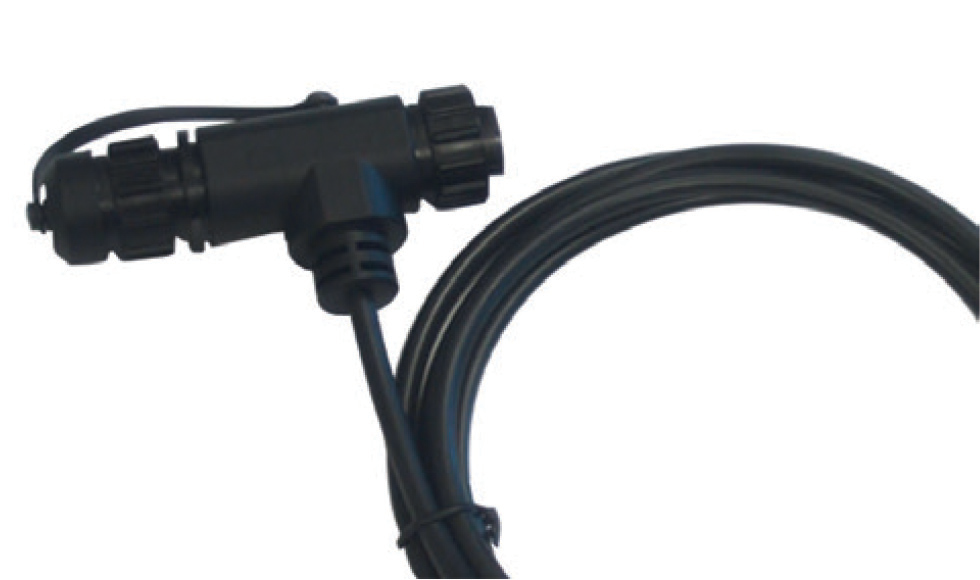

Cables
There are many optional cables for ANEDO units that connect to different power units and connect other ISOBUS-based units.
Special mention should be made of ANEDO's proprietary In-Cab T-splitter cable,
which can be attached to the ISOBUS In-Cab connector integrated into the tractor cab,
providing an additional free In-Cab socket in addition to the wired device, allowing any number of devices to be attached to the ISOBUS network.
