ISOBUS COMPONENTS

for businesses

ISOBUS data loggers

Automatic and general data-logging! The LogBox can read, process and forward the data provided by the tractors and implements’ ISOBUS and different CANBUS.

The device can automatically recognize the used CAN protocols as the ISOBUS (ISO11783), SAE J1939 universal CANBUS, ODB or the CANopen protocols. It can read the implements’ on-work and application information via the ISOBUS and read the diagnostic information as fuel economy, engine usage or work hours of the tractor.

During the processing all the data are combined and extended by the GPS information provided by the integrated GPS receiver and forward the collection data on-the-fly to the servers for further data-processing.

These features are integrated into a very compact outdoor device, which can work without any problem in -20 to +60 C° in dusty or humid environment condition.

The advantages
  • Compact device-case with integrated antennas
  • Integrated GPS receiver with optional RTK correction (RTCM 2.0)
  • Integrated Bluetooth and optional WiFi and dual-SIM 3G GSM module for the effective data-communication.
  • Universal CAN-based data-logging (SEA J1939, ISOBUS, CANopen, ODB, ISO-Diag)

Online management

Through our partners, we can offer comprehensive management systems that provide data processing, workflow planning, and overview of field units.

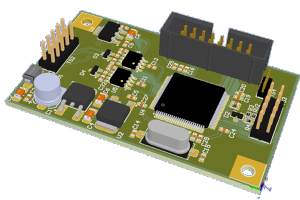

Log1Box

Our integrateable module. It extends the functionality of any connected unit, as it works as a gateway between the CAN buses and the UART output. The collected data are filtered, converted into a common format (J1939 SPN) and forwarded as small packages via the UART connection. The further data processing should be made by the master-board.

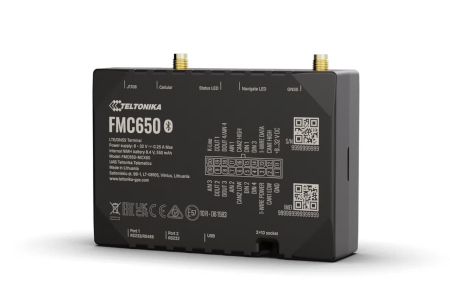

Log2Box

Cooperation with Teltonika Telelamtics and VisibleFarm Ltd, we have made an ISOBUS capeable Telemetry with online data-sharing including the basic ISOBUS information.

The device has a dual CAN connector to be able to get the data parallel from the tractor’s diagnostic CANBUS and the ISOBUS used by the implement. It offers connectivity for GPS receiver and GSM communication for online datalogging, while work full automatic, logging and forwarding the data to the cloudservers.

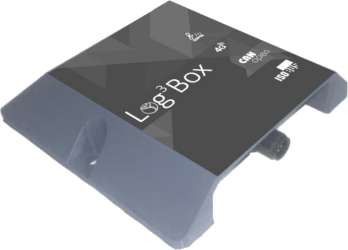

Log3Box

A new generation of online data collecting 4G device that includes all antennas integrated and full two-directional communication with ISOBUS visualisation and data-logging features.
Cooperation with Bucher Automation, we have developed a unique data-logger device, which provides a ISOBUS visualization, so drivers can made configuration, diagnostic and messaging via the ISOBUS terminals. Meanwhile in the background the full ISOBUS TaskController compatible data-logger collects not only the standard telemetry information, but the field-operation data and all the implement-specific work inforatrion too.
